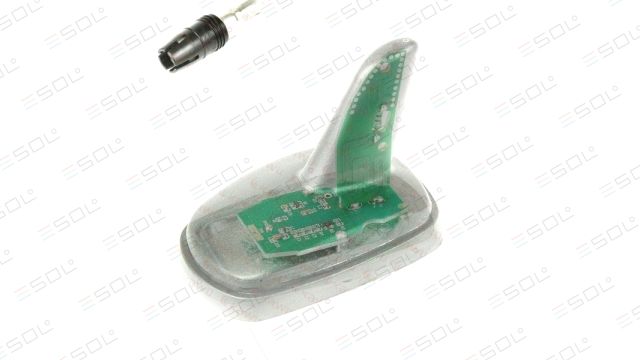

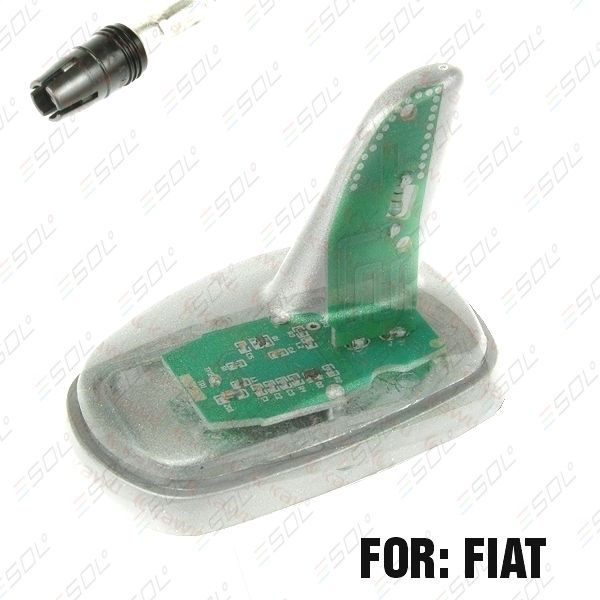

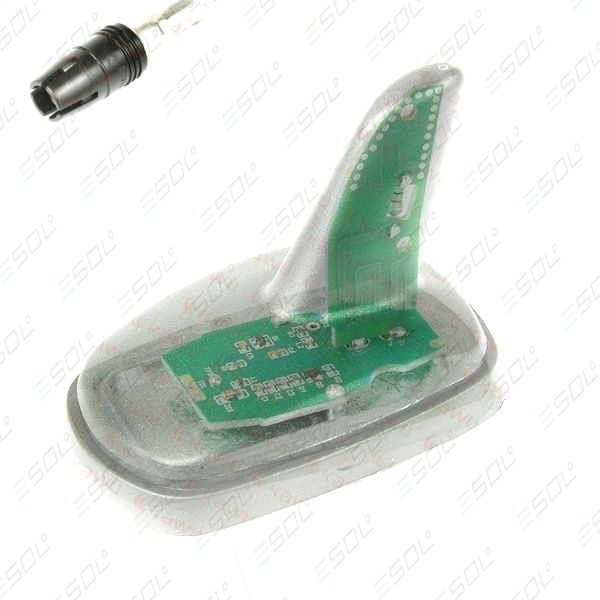

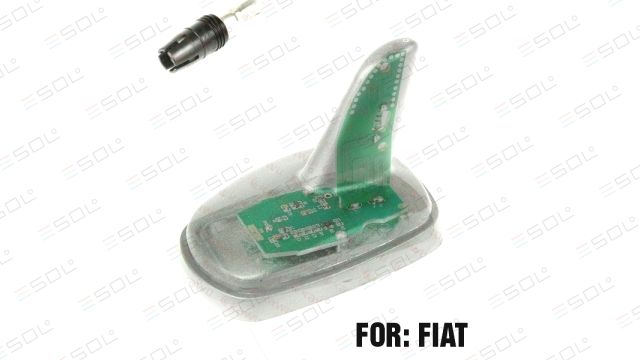

Shark Phantom antenna Fiat RAW (Raku I) 1.0m AM/FM
Kod: 40733
Producent: KAWU
Category:SHARK Car Antennas
Description
Shark antenna with an innovative design. This antenna has been made to meet the expectations of demanding consumers. Very good radio waves receipt. Thanks to this Shark antenna, a distorted or disappearing sound will not be a problem anymore. Specification below.
Specification

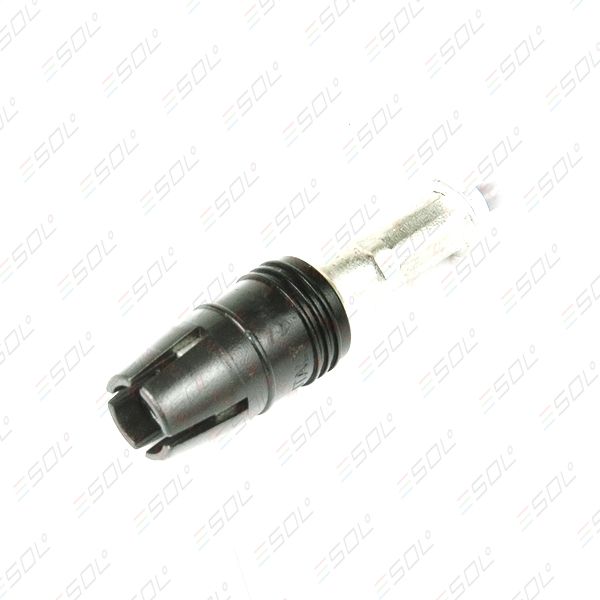

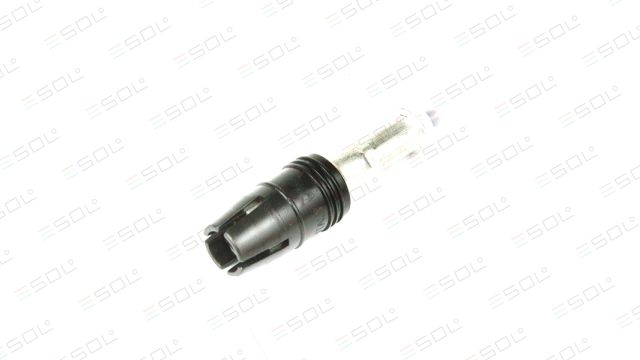

Antenna designed for receiving AM / FM radio signal and adapted for connection to a typical car radio with antenna connector Fiat RAW (Raku I). Equipped with a signal reception amplifier - Phantom amplifier - anetenna is powered via antenna cable. Dedicated for Fiat models
Technical specification:
- Operating frequencies: 520 - 1710 KHz, 87 - 108 MHz
- Amplifier gain: AM 15 +/- 1 dB, FM 12 +/- 1 dB
- Output impedance: 75 Om
- Cable lenght: 100cm
- Diameter of mounting hole: 15 mm
- Hight of the fin: 45 mm
