Professional GPS/FM/AM antenna for Opel 2004-2010 mast 20cm

Kod: 40597
Producent: KAWU

Category:Car antennas

Description

Professional GPS/FM/AM roof antenna for Opel 2004-2010 with high gain amplifier with original mast. The antenna is the equivalent of the original antenna used for the first assembly. It performs AM / FM and GPS radio reception functions The antenna has a built-in high-quality SMD amplifier, which is located in the antenna foot. The antenna amplifier inside the antenna has Phantom power, which means that it is powered through the internal wire (antenna cable). The antenna works with any factory or non-factory radio with installation with Opel 2004-2010 connector. In the case of a non-factory radio, it is necessary to use antenna separator, which supplies power to the internal wire of the antenna cable. The antenna does not work with an external antenna amplifier. Specifications below

Specification

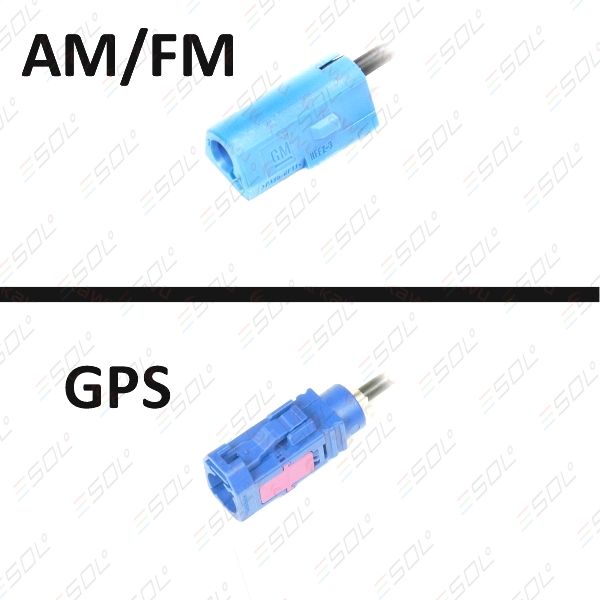

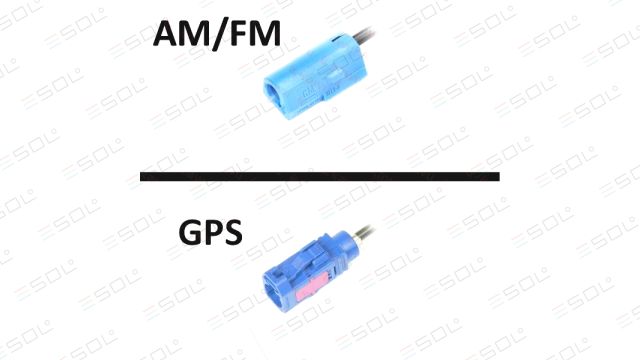

Compatibility: Opel 2004-2010 External antenna base thread: M14 Twisted mast: yes Mast length: 20 cm Opel connector - FM / AM signal - cable lenght 48cm. Blue Fakra connector - GPS - cable lenght 45cm.
Antenna to use with extensions / antenna adapters :
40158
 antenna extension FAKRA Male-Female 1m
40153
antenna extension FAKRA Male-Female 2m
40152

antenna extension FAKRA Male-Female 6m
40682 antenna adapter Fakra female 90° - Fakra male 0.15m
40659
antenna adapter FAKRA male - SMA-A
40358

antenna adapter FAKRA male - Wiclic female

and other.
